P-876 DuraAct Patch Transducer

Bendable and Robust

Useable as actuator, sensor or energy generator
Inexpensive
Min. bending radii of down to 12 mm
Compact design
Individual solutions

quote / order

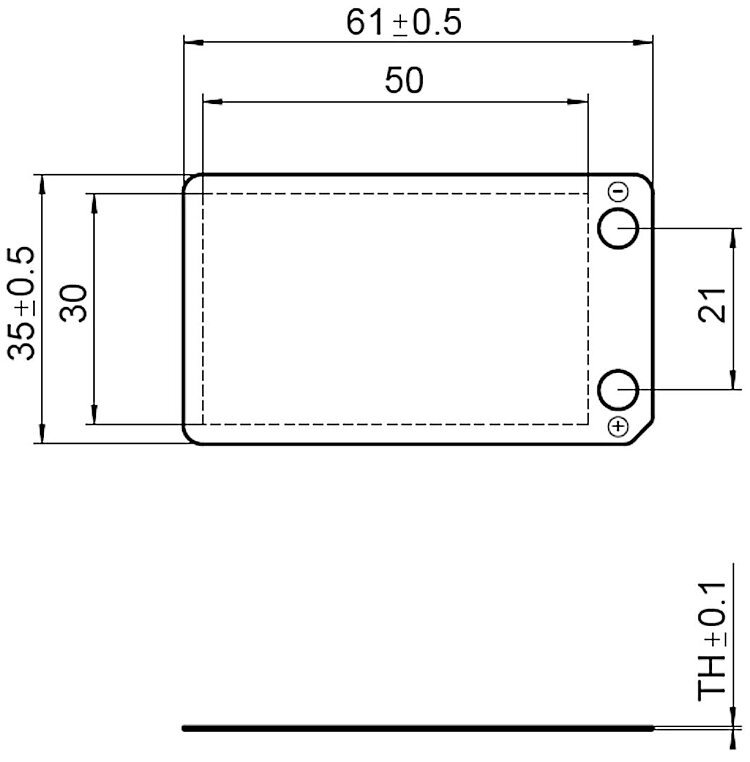

P-876.A1x, dimensions in mm. P-876.A11: TH = 0.4 mm. P-876.A12: TH = 0.5 mm. P-876.A15: TH = 0.8 mm.

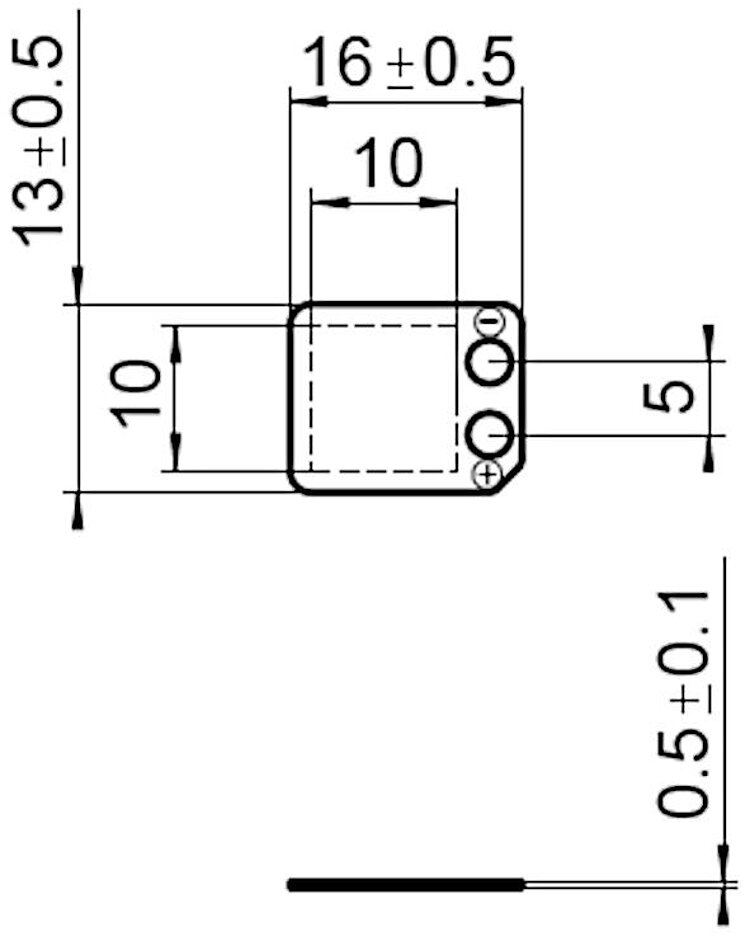

P-876.SP1, dimensions in mm

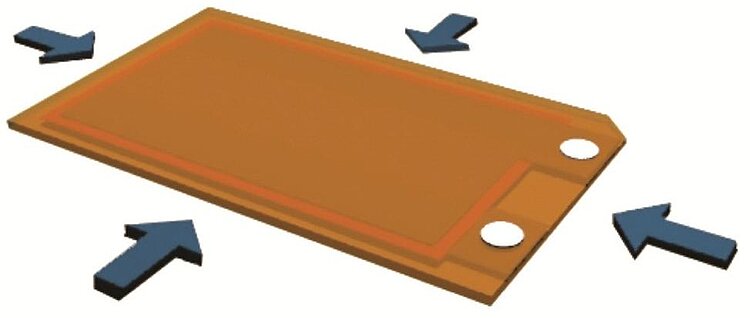

When a voltage is applied, the DuraAct patch transducer contracts laterally.

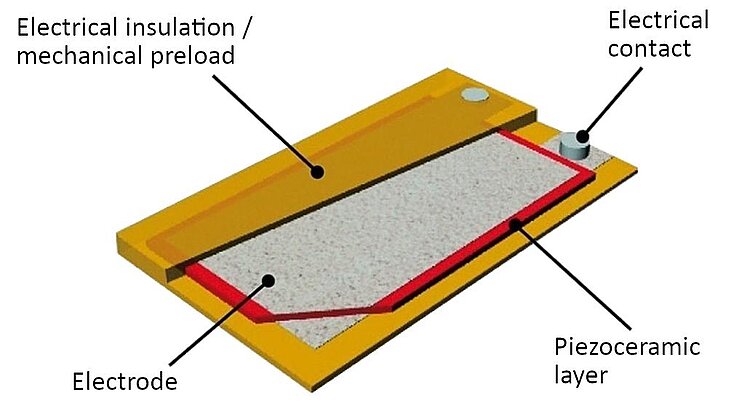

DuraAct transducer design principle

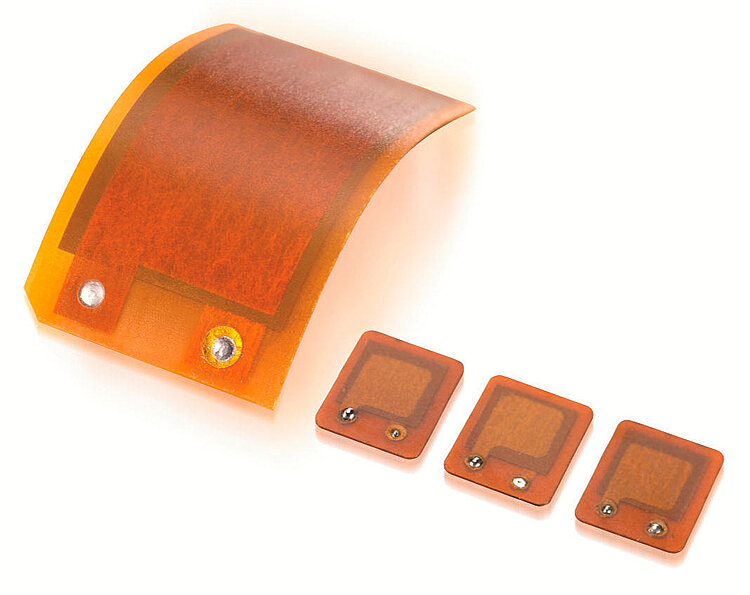

DuraAct patch transducers can be manufactured in various shapes.

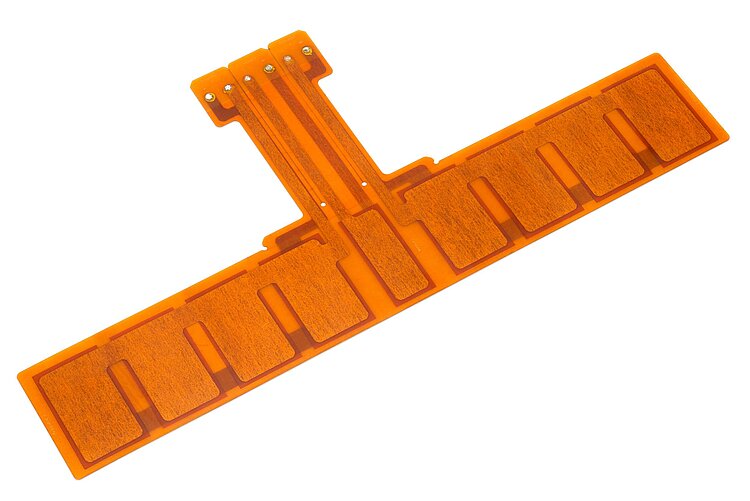

When arranged in an array, DuraAct patch transducers allow, for example, the reliable monitoring of larger areas.

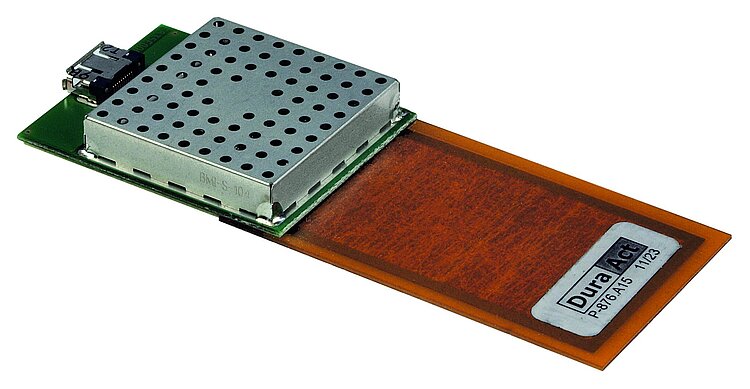

Electronic modules for sensor data processing, controlling the DuraAct actuator or harvesting energy can be connected close to the transducer.

Patch transducer

Functionality as actuator and sensor component. Nominal operating voltage from 100 up to 1000 V, depending on the active layer height. Power generation for self-sufficient systems possible up to the milliwatt range. Can also be applied to curved surfaces.

Robust, inexpensive design

Laminated structure consisting of a piezoceramic plate, electrodes and polymer materials. Manufactured with bubble-free injection method. The polymer coating simultaneously serves as electrical insulation and as mechanical preload, which makes the DuraAct bendable.

Customized versions and other specifications on request

Flexible choice of size
Flexible choice of thickness and therefore bending ability
Flexible choice of piezoceramic material
Variable design of the electrical connections
Combined actuator/sensor applications, even with several piezoceramic layers
Multilayer piezo elements
Arrays

Application fields

Industry and research. Can also be applied to curved surfaces or used for integration in structures. For adaptive systems, energy harvesting, structural health monitoring.

Download datasheet specifications

Datasheet

Version / Date

2023-05-11

pdf - 732 KB

Version / Date

2023-05-11

pdf - 740 KB

Version / Date

2019-02-06

pdf - 811 KB

Download

Motion	P-876.A11	P-876.A12	P-876.A15	P-876.SP1	Tolerance
Minimum lateral contraction	400 µm/m	650 µm/m	800 µm/m	650 µm/m
Relative lateral contraction	1.6 µm/m/V	1.3 µm/m/V	0.64 µm/m/V	1.3 µm/m/V
Drive Properties	P-876.A11	P-876.A12	P-876.A15	P-876.SP1	Tolerance
Operating voltage	-50 to 200	-100 to 400	-250 to 1000	-100 to 400
Drive type	DuraAct	DuraAct	DuraAct	DuraAct
Actuator type	Transducer	Transducer	Transducer	Transducer
Piezo material	PIC255	PIC255	PIC255	PIC255
Piezoceramic height	100 µm	200 µm	500 µm	200 µm
Electrical capacitance	150 nF	90 nF	45 nF	8 nF	±20 %
Mechanical Properties	P-876.A11	P-876.A12	P-876.A15	P-876.SP1	Tolerance
Minimum bending radius	12 mm	20 mm	70 mm
Blocking force	90 N	265 N	775 N	280 N
Miscellaneous	P-876.A11	P-876.A12	P-876.A15	P-876.SP1	Tolerance
Operating temperature range	-20 to 150 °C	-20 to 150 °C	-20 to 150 °C	-20 to 150 °C
Connector	Solderable contacts	Solderable contacts	Solderable contacts	Solderable contacts
Recommended controllers / drivers	E-413, E-821, E-835	E-413, E-821, E-835	E-413, E-821, E-835	E-413, E-821, E-835
