Drivers and Controllers for PICMA® Stack/Chip Multilayer Actuators
Piezo amplifiers for >> PICMA® Multilayer Piezo Actuators offer an output voltage of up to 130 V. Amplifiers with high output current allow dynamic operation of the actuators and precise positioning while requiring low power.

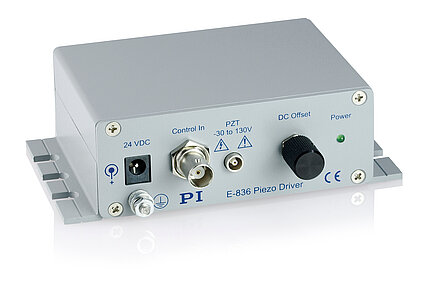

E-836 Compact Piezo Amplifier / OEM Module
Cost-Effective, Low-Noise Piezo Amplifiers for Dynamic Piezo Actuator Operation
- OEM module and benchtop device
- Peak current up to 100 mA
- Easy integration
- Power on/off without voltage spikes
- 24 V operating voltage

E-618 High-Power Piezo Amplifier / Servo Controller
High Currents, High Dynamics
- Peak current 20 A
- Rise times in the microsecond range
- 15 kHz bandwidth for high dynamics applications
- Overheat protection for piezo actuators with temperature sensor

E-617 High-Performance Piezo Amplifier
Industrial / OEM Module with Energy Recovery for Continuous Dynamic Applications
- Peak power to 280 W
- High currents to 2000 mA
- Low power consumption due to integrated energy recovery
- OEM module and top hat rail mounting

E-610 Piezo Amplifier / Servo Controller
1-Channel OEM Module with Optional Position Control
- Inexpensive 1-channel OEM solution
- Closed-loop and open-loop versions
- Notch filter for higher bandwidth
- Position control for SGS, LVDT, and capacitive sensors
- Peak current 140 mA

E-505 Piezo Amplifier Module
High Power, E-500 Piezo Controller System
- Peak current to 10 A
- Output voltage range -30 to 130 V
- Module for E-500 piezo controller rack
- Position control (optional)
- Interface / display modules (optional)

E-504 Piezo Amplifier Module
High Power due to Energy Recovery, E-500 Piezo Controller System
- Peak power 280 W
- High continuous power of 100 W
- Output voltage range -30 to 130 V
- Module for E-500 piezo controller rack
- Position control (optional)
- Interface / display modules (optional)

E-503 Piezo Amplifier Module
For Three Channels, E-500 Piezo Controller System
- Plug-in module for E-500 piezo system
- Peak current 3 × 140 mA
- Output voltage range -30 to 130 V
- Position control (optional)
- Interface / display modules (optional)

E-831 Piezo Amplifier Module
Low-Cost Module with Separate Power Adapter
- Compact piezo power amplifier
- Peak current up to 250 mA
- Inexpensive
- Low noise, high stability
- Easy integration
- Short-circuit proof, full overcurrent and overtemperature protection

E-709 Compact and Cost-Optimized Digital Piezo Controller
For SGS, Piezoresistive and Capacitive Sensors, 1 Axis
- Linearity error maximum of 0.02 %
- Fast 25 Mbit/s serial interface
- Comprehensive I/O functions
- Inexpensive OEM versions available
- Extensive software package
