Miniaturized Bending Elements

Miniaturized Bending Elements

Applications

  • Vortex flow measurement
  • Control of optical fibres
  • Minimally invasive instruments

Quote / Order

Customized Versions on Request

  • Shape variations, such as flattened areas or phases
  • Contacting, e.g. with wires

Specifications

Piezoceramic Mini Bending Elements
MaterialPIC151, PIC255, PIC181
L [mm]> 3
W [mm]> 1
TH [mm]> 0.4 (0.05 µm tolerance is possible)
Electrode materialsPVD thin layer: CuNi, Au, etc.





L       Length
W      Width
TH     Thickness
P       Polarization direction

Contact Us!

Quickly receive an answer to your question by email or phone from a local PI Ceramic sales engineer.

+49 36604 882-0info@piceramic.com
To contact form

Downloads

Datasheet

Material Data

Version / Date
2024-08
pdf - 77 KB
Version / Date
2024-08
pdf - 79 KB
Download
Download

Related Pages

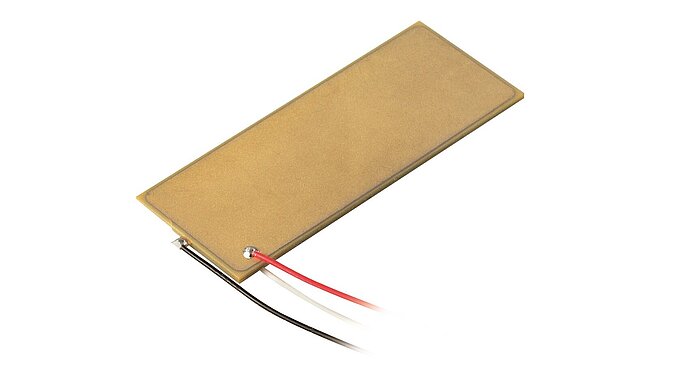

Piezoceramic Bending Elements
