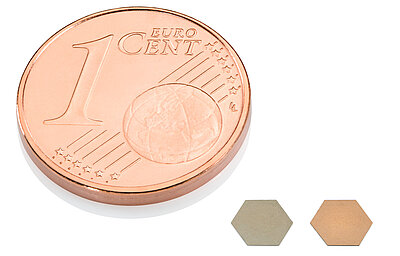

Miniaturized Hexagons

Miniaturized Hexagons

Applications

Quote / Order

Customized Versions on Request

  • Contacting by soldered strands or wires

Specifications

Piezoceramic Mini Hexagons
MaterialPIC151, PIC255, PIC181
L [mm]> 3
W [mm]> 3
TH [mm]> 0.1 (20 µm tolerance is possible)
Electrode materialsThick layer: Ag (from 0.2 mm TH)
PVD thin layer: CuNi, Au, etc.

L       Length
W      Width
TH     Thickness
P       Polarization direction
