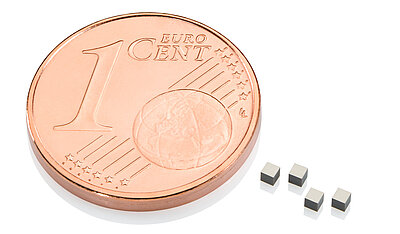

Miniaturized Shear Elements

Miniaturized Shear Elements

Applications

  • Microscope drives
  • MEMS stimulation
  • Excitation of surface waves

Quote / Order

Customized Versions on Request

  • Variety of electrode designs, e.g. with and without pole identification
  • Contacting, e.g. with connection wires

Specifications

Piezoceramic Mini Shear Elements
MaterialPIC151, PIC255, PIC181
L [mm]> 2
W [mm]> 1
TH [mm]> 0.2 (20 µm tolerance is possible)
Electrode materialsPVD thin layer: CuNi, Au, etc.

L       Length
W      Width
TH     Thickness
P       Polarization direction

Ask for a Quote

Request a free quote based on the required quantity and desired delivery date.

+49 36604 882-0info@piceramic.com
To quote form

Downloads

Datasheet

Material Data

Version / Date
2024-08
pdf - 77 KB
Version / Date
2024-08
pdf - 79 KB
Download
Download
