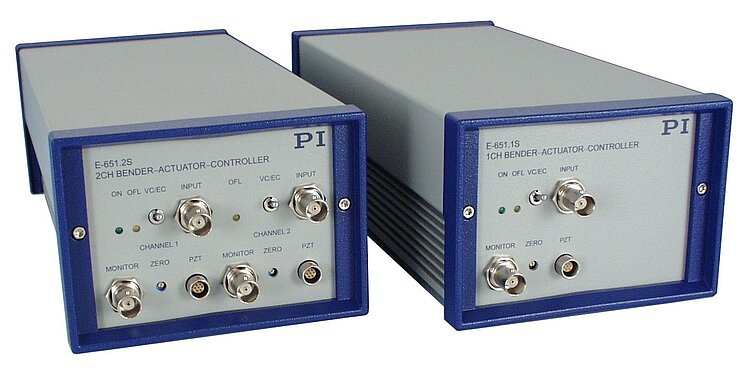

E-651 • E-614 Piezo Amplifier / Servo Controller

Function

Piezo amplifier and position controller for multilayer bending actuators, benchtop device

Piezo amplifier and position controller for multilayer bending actuators

E-651.2S: benchtop device

E-614.2BS: OEM module

Channels

1

2

Controller type

P-I (analog)

P-I (analog)

Sensor type

SGS

SGS

Sensor bandwidth

Low-pass filter frequency: 300 Hz / 1 kHz / 3 kHz selectable

Low-pass filter frequency: 300 Hz / 1 kHz / 3 kHz selectable

Input voltage range

-5 to 5 V

-5 to 5 V

Min. output voltage

0 to 60 V, additional fixed voltage of 60 V

0 to 60 V, additional fixed voltage of 60 V

Max. output power (<5 ms)

1 W

1 W / channel

Average output power

0.5 W

0.5 W / channel

Peak current (<5 ms)

36 mA

36 mA / channel

Average output current

18 mA

18 mA / channel

Current limitation

Short-circuit proof

Short-circuit proof

Voltage gain

6

6

Input impedance

100 kΩ

100 kΩ

Piezo / sensor connector

LEMO EPG.0B.307.HLN

LEMO EPG.0B.307.HLN

Separate pin headers for piezo output and sensor

Analog input / control input socket

BNC

BNC

Pin header

Sensor monitor output

0 to 10 V for nominal displacement

0 to 10 V for nominal displacement

0 to 10 V for nominal displacement

Sensor monitor socket

BNC

BNC

Pin header

Operating temperature range

5 to 50 °C

5 to 50 °C

5 to 50 °C

Overheat protection

Deactivation at 75 °C

Deactivation at 75 °C

Deactivation at 75 °C

Dimensions

125 mm × 90 mm × 265 mm

125 mm × 90 mm × 265 mm

100 mm × 40 mm × 200 mm

Mass

1.36 kg

1.45 kg

0.3 kg

Operating voltage

14 to 16 V DC (power adapter in the scope of delivery)

14 to 16 V DC (power adapter in the scope of delivery)

14 to 16 V DC
